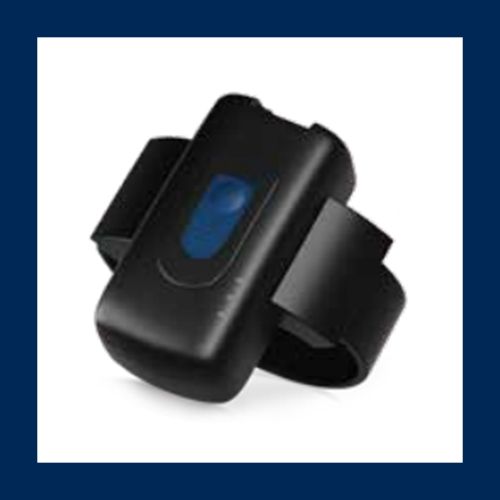

SP1603 Multifunction Parolee GPS/GSM Tracker
CREATING SAFER COMMUNITIES
SP1603 ankle GPS/GSM tracker is designed with the latest technology to monitor all kind of offenders where administrations seek accurate and reliable real-time tracking along with effective enforcement of home detention curfews.
DUAL SIM CARDS
The GPS tracking device is equipped with dual SIM to keep connected with the call centre. The dual SIM offers a flexible option to fulfill different use case.
COMMUNICATION FLEXIBILITY
The advanced firmware transmits the information seamlessly via TCP, UDP or SMS. With flexible programming and reporting modes, these features make it visible all the time to the monitoring center.
HOME DETENTION IBEACON
The SP1603 can be paired with home iBeacon to extend the battery life and apply home detention if needed.
Skypatrol strives to provide exceptional service and high-quality GPS hardware products. Give us a call to find a solution that fits your needs.
Download the brochure
PDF: SP1603-5c7c5e55936fd
Features
- Multiple temper detections mechanism
- GPRS/HSPA/LTE Modem option
- Dual sim concept
- LBS location availability
- AGPS with 56 channels high sensivve module
- LED indicavon
- Vibration indication
- Long life rechargeable LI-ON Battery
OPTIONAL
- GPRS/HSPA/LTE
- Wall Charger
- Home Beacon
- Prison Beacon
SP1603 Specifications
General
Location Technology: 56 channels
Operating Voltage: Operating Voltage
GPS
Location Technology: 56 Channel uBlox 7 All in one GPS & QZSS L1 C/A, GLONASS L1OF, SBAS: WAAS, EGNOS, MSAS
Accuracy: 2.0m CEP
Tracking Sensitivity: -162dBm
Navigation Update Rate: 10Hz
Antenna: Patch Internal
Assist GPS: Supported
Environmental
RoHS: Compliant (Optional)
EMC/EMI: SAE J1113; FCC–Part 15B
Operating Temperature: -10 ~ +50°C
Storage Temperature: 100%RH @ 50°C non-condensing
Humidity: 100%RH @ 50°C non-condensing
Shock & Vibration: U.S. Military Standards 202G and 810F, SAE J1455
Buttons
SOS: SOS Button for help and sending SMS to the pre-configured numbers
Status LEDs: GPS, Cellular, Power
On Board
CPU: ARM Cortex M3
Flash Memory: 4Mbit (8000 records)
Wireless: Bluetooth BLE 4.0
3D Accelerometer: On Board
Electrical
Operating Voltage: 5V DC Charger
Power Consumption: 40mA Active Tracking
Tracking Mode: With iBeacon – 83m – A Without iBeacon – 42mA
Power Saving Mode: With iBeacon – 25m – A Without iBeacon – 15mA
Backup Battery: Battery Recharging 5V DC
Physical
Dimensions: 83.50(L) x 79.50(W) x 29 (H)mm
Weight: 200g (With Battery)
Connectors, SIM Card Access
Mini USB: 1 Mini USB (configuration/debug)
GPS Antenna: Internal
GSM Antenna: Internal
SIM Card: M2M Embedded SIM or Micro SIM
Mounting
Not Required
Cellular
GSM/GPRS Fallback: GPRS Class 10
Data Support: SMS, TCP, UDP
GSM/GPRS Quad Band: 850/900/1800/1900 MHz
HSPA Bands: 800/850/900/1900/2100(Optional)
LTE Bands: B1/B2/B3/B4/B5/B7/B13/B17(Optional)
GSM/GPRS Output Power: Class 4 (2W) for 850 / 900 bands Class 1 – (1W) for 1800 / 1900 bands
HSPA Data Rate: 5.76Mbps UL/7.2Mbps DL (Optional)
SIM Card: M2M/Micro SIM Card
Shank Bands
Fiber Optic: Different Sizes of Fiber Optic Shank band available
