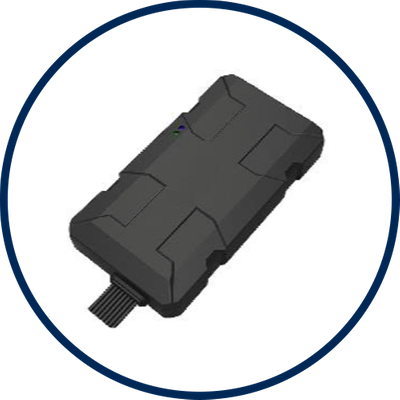

SP6824 Series Ultra-Compact GPS Tracking Device


The SP6824 is our latest generation GPS tracking device, optimized to meet all carrier and country certifications. The SP6824 is designed to withstand the harshest of conditions associated with vehicle telematics. This latest generation device can be widely used across all vehicle location applications ranging from subprime automotive needs to fleets, to consumer telematics. The SP6824 has multiple input/output interfaces that can be used for monitoring or controlling external devices. The SP6824 features the latest in cellular antenna designs with optimization and improved logic to reach and operation in the most challenging urban and rural environments. The SP6824 is equipped with the latest firmware design with optimized over-the-air capability. Users can also use the SP6824 to monitor the status of a vehicle and the control the vehicle by its external relay output.

image of a man pointing to a car price tag
image of a man selling a car to a couple
image of woman sitting in a convertible

Download the PDF

Features

  • LTE Cat-M1, NB-IoT & GPRS

  • Update firmware over-the-air
  • Integrated cellular and GPS antennas
  • Excellent GPS tracking and acquisition sensitivity
  • IP67 Rated
  • IP54 Rated
  • Integrated high-precision GPS engine
  • Support SMS, UDP, TCP, FTP & MQTT for data communications
  • 1 Ignition Input
  • 2 Digital Outputs
  • Micro-sized device allowing easier and more covertinstallations
  • Cost effective solution for GPS tracking

SP6824 Series Specifications

Cellular

Operating Bands: LTE Cat-M1, NB-IoT, GSM:850/900/1800/1900

  • LTE Cat-M1, NB-IoT
  • LTE-FDD Bands : 1/2/3/4/5/8/12/13/17/18/19/20/25/26/28
  • LTE-TDD B39 (For Cat.M1 only)
  • GSM:850/900/1800/1900
